Founded in 2004 in Kunshan, Jiangsu ProVision Electronics Co., Ltd. ( ProVision) is a holding subsidiary of Suntak Technology Co., Ltd. It is mainly specialized in producing integrated circuit substrate boards. The company is engaged in becoming a hidden champion of the segmented industry, and taking a leading role in the technology and manufacture of MEMS package substrates. The products are mainly applied in smart phones, automotives, PC, wearable devices, smart home, medical, PV, servers, inverters and other fields.
32,000㎡
500+
Mobile Phone, Wearable, Tablet
15,000㎡
Craft show
| Layers | 2 -8L |
| Strip Size | 189.0*68.0，70.0*240.0，75.0*240.0， 76.3*240.0， 95.0*240.5etc. |
| Unit Size | 5.4*6.8，8.1*8.1 / 15*16/ 19*19 etc. |
| Material | MGC 832NXA / 832NS / 972 Series Hitachi 705G/ 770G Series AUS308 / AUS 320 / SR1 |
| Finished Thickness | 0.120~0.500 mm |
| Min. Trace Width/Space | 0.025mm / 0.025 mm |
| Product Feature | Impedance,Selected OSP, SM Coining |
| Applications | Wearables，Wireless etc. |
Craft show
| Layers | 2-4L |
| Strip Size | 75.0*240.0，76.3*240.0etc. |
| Unit Size | 1.5*4.0 etc |
| Material | Doosan 7409HGB(LE)/(GQ) Series AUS308 |
| Finished Thickness | 0.500~0.800 mm |
| Min. Trace Width/Space | 0.040mm / 0.040 mm |
| Product Feature | SM Coining |
| Applications | Phone,Wearables,PCetc. |
Craft show
| Layers | 2 ~4 L |
| Strip Size | 66.0*142.0，50.8*188.95，50.8*152.4， 74.0*240.0，75.0*240.0，76.3*240.0etc. |
| Unit Size | 2*2/ 3*3 etc. |
| Material | MGC 832NXA / 832NS Series SYL SI13U / SI10US Series AUS308 |
| Finished Thickness | 0.120~0.500 mm |
| Min. Trace Width/Space | 0.040mm / 0.040 mm |
| Product Feature | SM Coining |
| Applications | Phone,Wearables,PC,Automobileetc. |
Craft show
| Layers | 2 ~4 L |
| Strip Size | 50.8*188.95，187.5*50.0etc. |
| Unit Size | 1.5*4.2 etc. |
| Material | MGC 832NXA / 832NS Series NANYA NPG-180BK / INBK Series AUSMEH / EG23 |
| Finished Thickness | 0.200~0.500 mm |
| Min. Trace Width/Space | 0.040mm / 0.040 mm |
| Product Feature | 油墨整平 |
| Applications | Phoneetc. |
Craft show
| Layers | 2~4 L |
| Strip Size | 93.81*93.81，189.0*68.0，75.0*240.0， 100.0*103.0，76.3*240.0etc. |
| Unit Size | 1814 / 1612 / 1411 / 1109 etc. |
| Material | MGC 832NS Series Hitachi 705GSeries AUS308 / AUS 320 |
| Finished Thickness | 0.120~0.300 mm |
| Min. Trace Width/Space | 0.025mm / 0.025 mm |

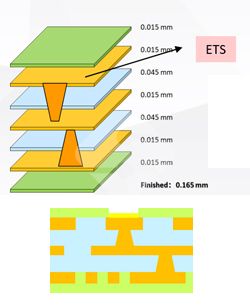

| Product Feature | Coreless Structure,ETS Structure |
| Applications | Phone,Wearablesetc. |
